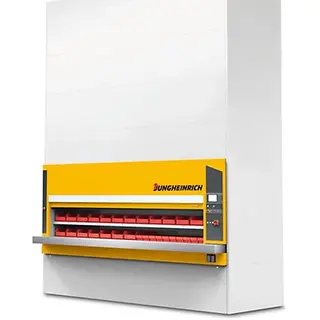

Vertical paternoster racking system

Rapid access to all stored goods thanks to high throughput speed
Optimal use of space due to high-density warehouses and utilisation of room height
Ergonomic design combined with extensive safety features
The paternoster racking has an impressive service life due to its robust technology which has proven itself over many years

Vertical carousel system

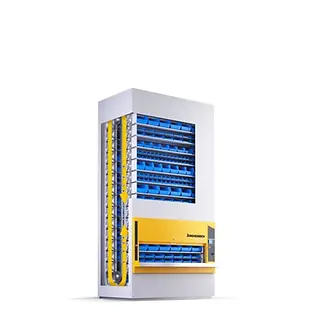

Vertical paternoster racking systems function according to the circulation principle. Like a carousel, the items rotate towards the service opening, where they can be conveniently and safely removed by the operator. They can be tailored to your needs and enable high-density storage, be it in production or in the warehouse. The result is maximum storage space with a minimal footprint. Other benefits include high picking capacity and throughput speeds, with quick access to all items being possible. Vertical paternoster racking is useful wherever space or order-picking time is no longer sufficient with static storage. It can be connected to the Warehouse Management System through our Jungheinrich Logistics Interface at any time. It can be installed as free-standing carousel racking or connected to the structure of levels in the building, up to 10 metres in height and with multiple service openings. The latest safety technology and optimum ergonomics make vertical paternoster racking a reliable, user-friendly solution.

Features

Adaptability

Customised carrier equipment is available, including intermediate shelves, drawers or dividers.
The robust construction enables the paternoster racking to be moved inside the hall using rollers.
Stand-alone or system operation.
Retrofitting and conversion packs available for change of use.

Small space requirement

Reduction of the space requirement by using the room height.

Easy integration

Easy to integrate into existing warehouse processes.
Direct connection to Warehouse Management Systems (WMS), e.g. Jungheinrich WMS.
Integration via award-winning interface software Jungheinrich Logistics Interface.

Pick-by-light system (optional)

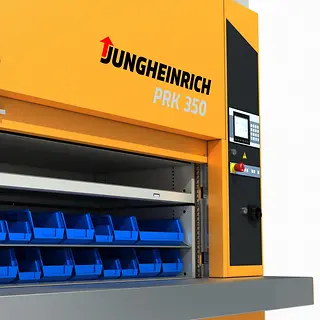

TIC matrix at the lower end of the service opening supports the quick and precise retrieval of goods.

High throughput

Fast throughput speed guarantees high picking performance.

High safety standards

Certified security.
Permanent access to goods using the emergency manual crank in the event of a power failure.
Option to define access rights.
Optimum protection for personnel and goods with light curtain.

Long-term investment security
