Electric tow tractor 5.0t

5000 kg

Powerful and maintenance-free 3-phase AC motors
Intuitive operation thanks to multifunctional steering wheel jetPILOT
Safe cornering thanks to steer- angle-dependent curveCONTROL
Individual options for an optimal workplace
From the driver's position easily accessible coupling

EZS 350

With our robust and efficient EZS 350 tow tractor maximum ride comfort meets best performance and maximum safety. Its strengths are particularly evident in tow trains with tow loads of up to 5000 kg. As a harmonious system with Jungheinrich GTE trailers it can easily move larger and medium-heavy loads from A to B. The economical and powerful three-phase motor convinces with high performance, low consumption and efficient energy recovery through regenerative braking. Safe cornering is ensured by the curveCONTROL assistance system and the automatic parking brake with roll-back protection which secures tractor and trailer at standstill. Sophisticated ergonomics and technology enable safe and comfortable working. Effortless entry and exit, intuitive and gentle driving like in a car, practical one-handed operation, LED lighting and a wide range of individual customisation options – this is what an optimal operator seat looks like.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Powerful and efficient drive concept

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High efficiency levels with excellent energy management.
Powerful acceleration and rapid direction change.
Maintenance-free drive motor without carbon brushes.
2-year warranty on driving motor.
Regenerative braking with energy recovery.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
Different batteries available from 375 to 620 Ah.
Lateral battery exchange option for multi-shift environments (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Comfortable and safe driving

The balanced frame guarantees traction at all times.
Additional cushioned stand-on platform (optional).
Programmable crawl speed button allows travel at reduced speed.
Safe cornering speed due to curveCONTROL.

Rugged construction for the toughest applications

Impact-resistant steel drive panel.
High-quality stainless steel skirt raised extra high on the front panel.
Robust LED lights (optional).

Always informed

The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
Activation of the truck via PIN code (optional).
Selection of 3 travel programs (optional).

Improved visibility

Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).

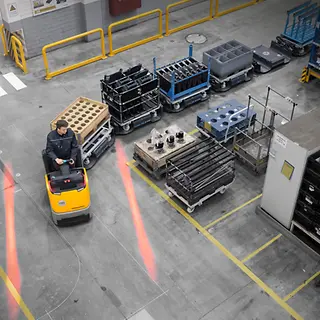

Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Optimum ergonomics

Comfortable entry and exit thanks to low operator platform.
Three alternative travel programs can be set to suit every specific need.
Fast and easy trailer coupling and decoupling with semi-automatic remote release from operator platform (optional).
Different backrests available.
Electric steering similar to a car with jetPILOT multifunctional steering.
Range of coupling systems for various trailer types.
All wheels are superelastic (including drive wheel) to ensure maximum comfort.

Additional features

Different couplings.
Reversing/inching control for comfortable coupling and decoupling.
Hydraulic or electric supply connections for our GTE trailers.
Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
Further options for the right configuration of the tow tractor.
