Stage ERC 2z (2019)

Electric pedestrian stacker 1.2 - 2t

  • 2400 - 6000 mm
  • 1200 - 2000 kg
  • Efficient stacking and retrieval at lift heights up to 6 m.
  • Manoeuvrable and compact due to small dimensions.
  • Ergonomic working due to folding stand-on platform.
  • Efficient double-decker transport with support arm lift.
  • Enhanced warehouse safety thanks to intelligent assistance systems.

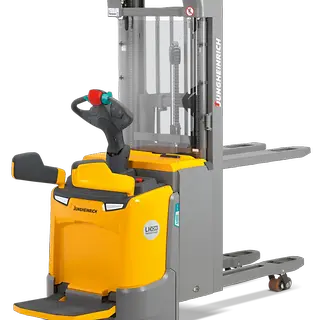

ERC 212z - 220z

The efficient and versatile ERC electric pedestrian stacker trucks are particularly well suited for the economic transport of goods over longer distances as well as for stacking and retrieval operations at higher racking levels. Equipped with a folding stand-on platform or optional support arm lift, they can be used very flexibly over middle distances. Thanks to the increased ground clearance, uneven ground and ramps can also be negotiated without any problems. On request, the additional support arm lift enables the double-decker transport of two pallets at the same time for a significant acceleration of throughput. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo at heights up to 6 metres. In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lifting height preselection positionCONTROL ensure more safety and efficiency in everyday warehouse operations.

Li-Ion

Content Li-Ionen + 5 Jahre Logo
No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Telematik Box Erd

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
ERC 212z 1,200 kg 4,700 mm 11 km/h 2,039 mm 24 V
ERC 214z 1,400 kg 6,000 mm 11 km/h 2,060 mm 24 V
ERC 216z 1,600 kg 6,000 mm 11 km/h 2,060 mm 24 V
ERC 220z 2,000 kg 4,800 mm 10 km/h 2,060 mm 24 V
